Array Junction Box (AJB)

An Array Junction Box (AJB) also known as Combiner Box is the equipment to combine the DC voltage generated from a number of solar photovoltaic panels. It serves as a central point where multiple solar panel strings are connected and consolidated into a single output. This allows for efficient management, protection, and monitoring of the solar array.

AJBs typically contain features such as overcurrent protection, surge protection, and sometimes monitoring equipment to ensure optimal performance and safety of the solar power system.

More Features About Array Junction Box (AJB)

  • Designed to meet outdoor installation requirements
  • Suitable for both small and large systems
  • Equipped with fuse/MCB for overload protection on each string
  • Includes blocking diode for module reverse current protection
  • Provides string power measurement for large-scale projects
  • Features a disconnect switch/MCB on the output side for isolation from the charge controller/inverter
  • Incorporates a Surge Protection Device (SPD) for protection against electrical surges and lightning
AJB 1 in 1 out

 Array Junction Box (AJB)

  • Size – 1 in 1 out
  • Box-IP65 (Fibox)- 1 nos.
  • SPD Type -2 , 600 v(Havells/Elmex)-1 nos.
  • DC fuse 1000V DC, 15 amp(Havells/Elmex)- 1 nos
  • Wiring-Siechem/Polycab(4 or 6 sqmm) Glands- PVC
AJB 2 in 1 out

 Array Junction Box (AJB)

  • Size – 2 in 1 out
  • Box-IP65 (Fibox)- 1 nos.
  • SPD Type -2 , 600 v(Havells/Elmex)-1 nos.
  • DC fuse 1000V DC, 15 amp(Havells/Elmex)- 1 nos.
  • Wiring-Siechem/Polycab (4 or 6 sqmm) Glands- PVC.

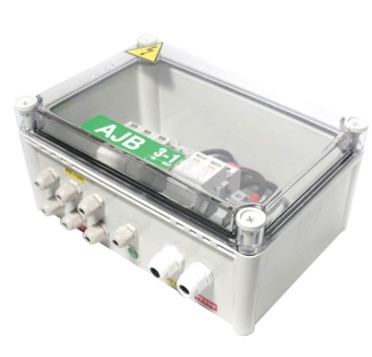

AJB 3 in 1 out

 Array Junction Box (AJB)

  • Size – 3 in 1 out
  • Box-IP65 (Fibox)- 1 nos.
  • SPD Type -2, 1000 v(Havells/Elmex)-1 nos.
  • DC fuse 1000V DC, 15 amp(Havells/Elmex)- 1 nos.
  • Wiring-Siechem/ Polycab(4 or 6 sqmm) Glands- PVC
AJB 5 in 1 out

 Array Junction Box (AJB)

  • Size – 5 in 1 out
  • MCB Box-IP65 (Fibox)- 1 nos.
  • SPD Type -2, 600 v(Havells/Elmex)-1 nos.
  • DC fuse 1000V DC, 15 amp(Elmex)- 1 nos.
  • Wiring-Siechem/ Polycab (4 or 6 sqmm) Glands- PVC
